Many thanks to SWLing Post contributor Dan Robinson, who shares the following review:
MLite-880 Spectrum Display Portable: Advanced SDR Performance in Traditional Portable Clothes
by Dan Robinson
For years, radio listening hobbyists (as many of us who are still around in 2026) have had numerous choices when it comes to portable receivers. Those of us who got our start as DX’ers/SWLs in the 1960’s (some earlier) or 1970’s have seen a lot of hardware come around the corner.
Some years ago, the Malahit/DSP receivers, firmware, and hardware designed and made in Russia appeared. There was the Belka, amazingly small but a superb receiver that many of us still use. Although shortwave broadcasting has generally been on the decline, we were lucky that companies such as Tecsun, Sangean (reported to have now stopped all production of SW portables), and other China/Taiwan-based companies continued to make impressive portables.
ICOM, Yaesu and Kenwood began putting spectrum scopes in displays a long time ago. ICOM’s IC-R9000 (produced 1989 to 1998) was the first to bring that feature. The more recent Icom 7300, 8600, and 9500 demonstrated far more advanced spectrum displays, as did Kenwood. Ten Tec in its original form put rudimentary spectrum display capability in its RX-350/Jupiter receiver/transceiver.
Today, we’re seeing a number of HT units with some kind of spectrum display. The Radtel 950Pro is one example of this. ICOM’s IC-R30, discontinued but a superb wide band unit, also has a spectrum option though quite limited. Various China-based companies started putting spectrum displays into the ATS series of receivers, and scope displays became standard on transceivers by Xiegu and others.
Malahiteam in Russia licensed firmware out to a range of China-based manufacturers. The China-made “ATS” portables available from AliExpress and Banggood have been through numerous versions, including the ATS25 Pro + AIR desktop, the ATS25 Ultra, ATS25 XF (see https://www.youtube.com/watch?v=LJC-pAu4nUk), and these are increasingly emphasizing the spectrum option on the display. There have been some very interesting front panel designs such as the DP-666 based on the TF6686 chip, and the AMNVOLT ESP138, the first with dual 4732/6686 architecture (see: https://www.youtube.com/watch?v=m1njJskDSUI&pp=ygUMZXNwMTM4IHJHzGlv)
What we had not seen until recently was anyone putting a spectrum display into a “traditional” portable cabinet (some years ago, I had suggested to County Comm/Maratac which carried a re-badged Tecsun PL-368 that they consider doing so. At one point I received a photo of a prototype which looked like a PL-368 with a spectrum display at the top. But to my knowledge nothing was done to advance that to market).
WHAT IS THE MLite-880?
There have been a number of reviews/demonstrations on YouTube of the MLite-880, including by Tech Minds (see: https://www.youtube.com/watch?v=cmO8TIr_VFo). One of the most extensive is a nearly hour-long review by a Russian YouTuber RADIOCHIEF.RU (see: https://www.youtube.com/watch?v=ut6cY2jZv7Q&t=1065s) and another excellent overview by Radio Bunker here: https://www.youtube.com/watch?v=wgcRoha-mfM).

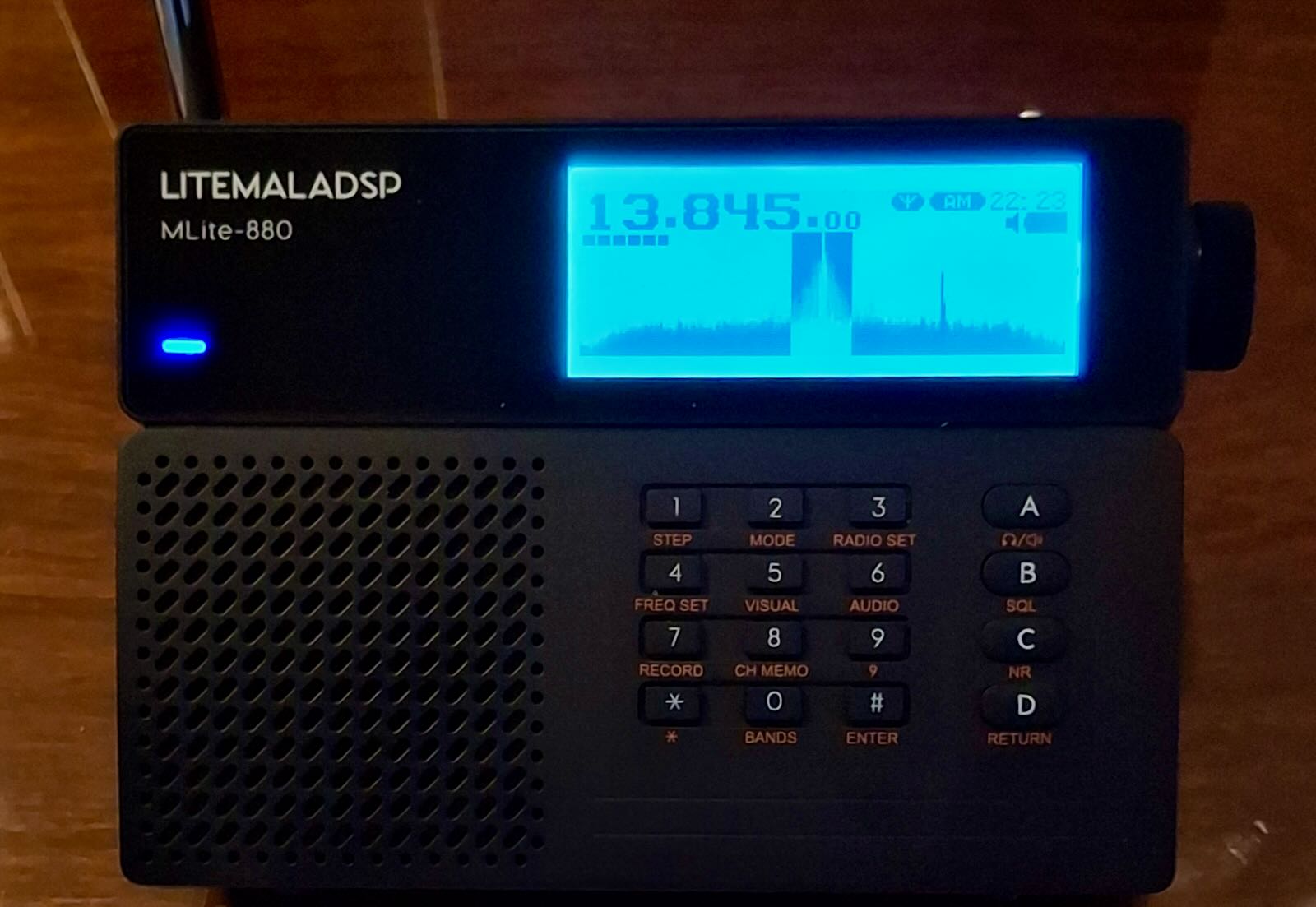

The major feature can be seen at power on. Instead of just a digital/numerical display of frequency we see the frequency AND below, a 40 kHz slice of spectrum. As the advertising description on the Elecevolve.com website states:
“A new generation of SDR digital radio that can “see” radio stations” . . . and “the radio in people’s impressions stays in the last century.”
The message that Malahiteam wants to convey is clear: this is a major step forward from portable design of the past.
The radio is very light, with a back-stand and a fairly robust whip antenna which stands at an angle when the receiver is being used with the back-stand (unfortunately, the antenna base does not allow it to go vertical).
Around the cabinet, there are a minimum of controls: on top, we have a simple power-on/off switch and a microSD slot (more about that later). USB-C and headphone jack are on the right, and an external antenna jack on the left. The frequency display module of the radio looks like just that — it’s on top above the multi-function keypad and ABCD keys. As for mode displays, there are battery and Bluetooth lights below and next to the LITEMALADSP letters. On the back, we find the 21700 battery compartment, and on the back-stand, we find information about the receiver, but no “Made in…” information whatsoever.
From the videos, and certainly from the name of the radio (LITEMALADSP) we have the impression that the MLite-880 is a cost-reduction version of the Russian DSP/2/3 receivers. Neither 4732 nor TEF 6686 chips are used. While one video review states that an MSI-SDR-M1 chip is inside, Georgiy at Malahiteam states that this is not so.
There was obviously a deliberate choice of the 21700 battery rather than the 18650 used in Tecsun, Choyong, and other portables. First adopters say that so far, this battery keeps the receiver going for hours, something I can confirm. Anyone unfamiliar with professional type batteries like this should invest in a good standalone charger; if you already own a Tecsun PLxxx or D808 portable you will be familiar with 18650 and similar cells.
The inclusion of a backstand is very welcome, since Russian DSPs and China-made SDR portables often lack one. The whip antenna is not thin and flimsy like those found on some China-made small portables. There’s a mini to SMA adapter included in the box.
One reviewer notes that high-speed microSD cards need to be used because files are recorded in WAV format. Georgiy at Malahiteam states that 16 and 32 GB cards have worked; we still don’t know what the maximum card size is. Recording capability is a feature seen on other portables like the Raddy RF919. A good sized speaker is on the left. The tuning knob has a dual push-pull function for volume and frequency change.
And the radio has Bluetooth capability, which worked fine when I first tried it with a Bluetooth speaker.

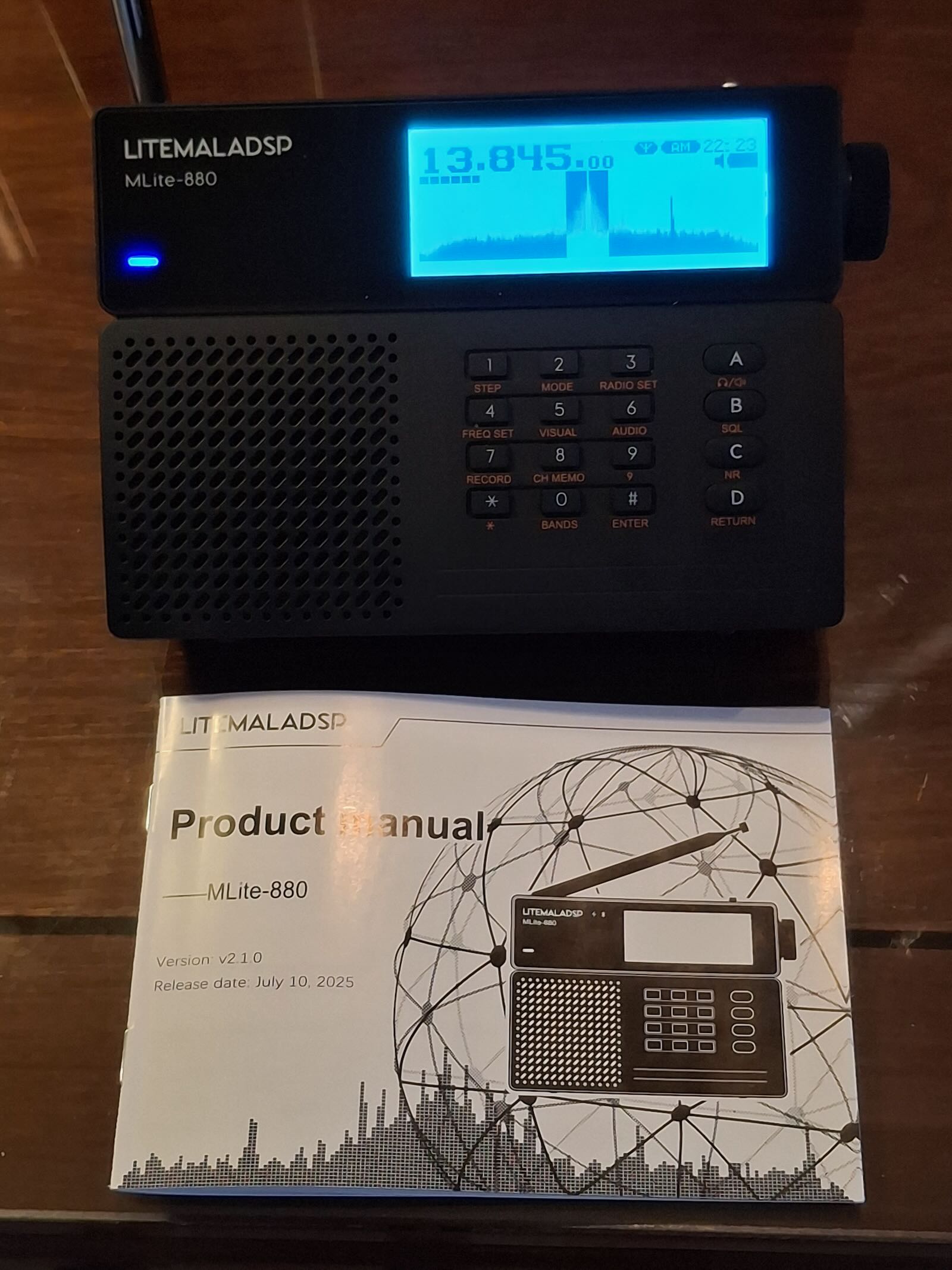

In menus under “About” we see “Designed in Russia/Made in China.” I recommend that readers view the various videos available online. While I was in the process of writing, I was surprised when the MLite-880 I had ordered from Banggood showed up on my doorstep. So, I’m able to provide initial impressions, and when a second unit arrives here, I’ll do some unit-to-unit comparisons.
VIDEO: UNBOXING AND DEMO
Click here to view on YouTube.
“LITE” BUT NOT LIGHT ON FEATURES
If this is supposed to be a “Lite” version of the Malahit DSP receivers, whether the original Russian-made units or those from China, that would not be apparent to someone using this receiver for the first time. Numerous options are brought over from the Malahiteam DSP. We have synchronous reception AND the ability to correct calibration variations. Recalibration and BFO fine adjust is something we see on Tecsun portables, and China-made SDRs, and the AFEDRI SDR.
I won’t list everything, but we also see Hi-Z/50 Ohm, BiasT, Attenuation, and options for adjusting display brightness, spectrum average, spectrum fill, and RDS view. That is quite a lot of flexibility and reminds me of what we find on receivers costing thousands of dollars. Under Audio settings, we see Filter Type, Filter Low Freq, Filter High Freq, and variable Noise Reduction. One reviewer asserted that NR “works significantly better than on the Russian-made DSP-3, which costs near $500,” and based on my first tests, I agree. NR runs from 0 to 15 and, once set, can be quickly activated by pressing the C button on the right labeled NR. Overall filtering ranges: 0 to 8 Hz, 0 to 12 Hz, 0 to 15 Hz for the three designated filter positions.
ABC settings include AGC limit, AGC gain, and manual control, all settable in dB. On a third page of options, we find NB Mode, NB Threshold, Equalizer Type, Key Beep Level, and SQUELCH Threshold. Recording is accomplished with a direct access button (NOTE: I had some problems getting record to work and it remains to be seen if this is a microSD issue or an indication of some other problem). A quite nice printed manual shows the modes: USB, LSB, CW, DSB, AM, SAM, NFM, WFM. Steps are listed as: 100 Hz, 500 Hz, 1 kHz, 2.5 kHz, 5 kHz, 6.2 kHz, 8.3 kHz, 9 kHz, and 10 kHz.
The MLite-880 contains band ranges selected by pressing the appropriate key and then A/B to scroll through those ranges. Coverage is from 150 kHz to 519 kHz, from 522 kHz to 1620 kHz, and up to 26,100 kHz. But one can directly enter any frequency in this entire range, regardless of the designated ranges. Under AMATEUR BANDS, we find 135.70 kHz to 137.80 kHz (2200m), 472 kHz to 479 kHz (630m), 1800 kHz to 2000 kHz, 3500 kHz to 3800 kHz, 5351.5 kHz to 5366.5 kHz, 7000 kHz to 7200 kHz, and on up to 29.700 kHz, with 70 mHz to 70.5, and 144 mHz to 148 mHz. Finally, FM/VHF bands include 65.9 mHz to 74 mHz (OIRT), 88 mHz to 108 mHz, and AIR band 108 to 136.
The spectrum display on the MLite-880 is 40 kHz. For most people, especially those coming from a portable with just a digital numerical readout, I don’t think this is going to be a problem. The 880 obviously has a smaller spectrum display than the full Russian DSP or Chinese-originated portables. Under VISUAL settings, we have choices of: BRIGHTNESS LEVEL, BRIGHTNESS OFF TIME, SPECTRUM AVERAGE, SPECTRUM FILL.
I have not opened my MLite-880, but RADIOCHIEF.RU on YouTube shows the cabinet back removed (around the 29-minute mark). We see extensive shielding with metal covers over key sections. Very impressive, and it finds me wishing that other manufacturers would have done this. How much better the short-lived “Elite Satellit” by Eton might have been with better internal shielding.
What remains to be seen is the extent to which the MLite-880 monochrome display throws off interference, a well-known issue with the original Russia-made Malahit units and China-made portables. See my interview with Georgiy of Malahiteam, who notes that not all noise is gone. “We weren’t able to completely eliminate the noise,” he says, adding that “it still occurs in places, mostly on the long and medium wavelengths. However, significant attention was paid to the screening, and turning off the display completely solves the issue.” The screen shutoff he mentions is accomplished as of now by pressing the “9” key.
We learn from the few available YouTube reviews that the main microcontroller in the MLite-880 is the STM32H743, which one reviewer says is “about the same as the older version in the Malahit DSP-3”. And he adds: “It’s a full-fledged SDR like the DSP-3 that is, unlike all sorts of superhet Tecsuns and DEGENs on chips with all sorts of soft mutes, the Malachite works just as well but significantly better. . .”
Unfortunately, so far we see that firmware updating is accomplished using the STMCube program used by the Russia and China units and the excellent AFEDRI. I find STMCube to be clunky and often frustrating, though it seems straightforward when explained in the ML-880 manual.
RADIOCHIEF.RU on YouTube provides a demonstration of the MLite-880, comparing it with an ICOM IC-R20 and a DSP-3. He notes that while there are flaws in the 880 they appear to be fixable via firmware upgrades. In the downloads section of the elecevolve website we see version 1.2 dated 6 February 2026. The unit delivered here has 1.1 The printed manual shows “v2.1.0 Release date July 10, 2025”. I’m not aware of videos or other online presence of the ML 880 before January 2026.
WHAT’S THE BIG DEAL?
SWLing Post readers, whether SWLs or amateur operators, may be asking what the big deal is with the MLite-880. That’s understandable, but let me explain the significance. Much as the Choyong LC-90 became the first receiver to provide HF and Internet radio in a traditional radio cabinet (though without any spectrum display), the 880 shows that placing such a display in a traditional portable cabinet has been quite possible for some time — it just took someone to go ahead and do it.
For one comparison, think of what something like the SONY ICF-SW55 with its quite large front display, could have been had DSP technology been available decades ago! The ML 880 should prompt other manufacturers to head in this direction (yes, we’re talking about you Tecsun). One could easily envision a spectrum display in any one of a range of other portables, such as the D-808 or Raddy RF919.
PERFORMANCE
I have included a video showing the MLite-880 tuned to various AM, FM, SW and AIR frequencies. It appears there is no ferrite bar, so we’re dependent on the whip antenna. RDS on FM is superb, with digital information picked up immediately upon tuning in a station. On AIR band, I would rate the 880 as acceptable (I’m spoiled by my AOR-3000A). Thankfully, SSB and SAM are usable on AM/MW. And in FM we have multiple bandwidth options.
The big headline for me is how superb NR (noise reduction) is on the Mlite-880. Though changing the values (0 to 15) requires diving into a menu setting, being able to just press the letter key that controls NR is really nice. Signals jump right out of the mud, and combining NR with SAM improves things even more. Other users and I have already sent a request for an upgrade that would enable selectable sideband SAM, so we’ll see if that change can be made.
For me, another headline is how well-calibrated the Mlite-880 is out of the box. I have yet to use the fine adjustment feature found in the menu. And stability is superb. This is how SSB should be implemented and should be a lesson to other China-based manufacturers (for example, my Radtel 880 and 950Pro HTs both exhibit CW/SSB error out of the box, which in my view speaks volumes about QC).
FIRMWARE UPGRADES
It would have been far preferable to have live OTA upgrade ability on the 880, as we do on the Choyong LC-90. In response to an inquiry, “elecevolve.com” states: “Regarding the OTA firmware real-time upgrade feature you mentioned, it is currently not supported. This upgrade involves not only firmware but also hardware improvements. We will take your suggestion into consideration and explore adding OTA firmware real-time upgrade functionality in future updates.” See the comment by Georgiy of Malahiteam on the updating issue.
OTHER RECOMMENDATIONS
ENCODER: The encoder on the Mlite-880 is “clicky” and noisy. Given the amount of use the radio’s only knob gets (push/pull for volume, constant frequency tuning) a higher quality encoder is an absolute must. Consideration should be given to providing a separate volume control — this would reduce strain on the encoder which now has to be pressed in and out many times during a listening session.
COVERAGE ISSUES: As suggested by other first adopters 30-50 MHz is insufficient, and the full tuning range should be 148-999 MHz.
BACK-STAND VULNERABILITY: Thankfully, the back-stand on the 880 is wide and feels sturdy. However, I can see situations where the radio may be pressed down while using the stand, causing the back-stand to break. I don’t see a way to replace the back-stand, but am seeking clarification from Malahiteam and the distributor on this issue.
DISPLAY NOISE?
As I was finishing this review, I noticed a discussion of some display noise and the sensitivity of the Mlite-880 display to finger contact. These issues plagued the Malahit and Chinese copies for years, so we’ll have to watch this. If the internal shielding in the MLite-880 is what it is, it’s hard to see how much more could be done in this regard. Again, see the comment on this by Georgiy from Malahiteam.
SUMMARY
For me, the sudden appearance on the radio market of something like the MLite-880 is a thunderbolt for the radio hobby. Sure, a spectrum display is not a big deal when we’ve been used to having the feature for decades. But this is important — I have never seen anyone think it would be a good idea to put this in a traditional radio cabinet. We have to credit the guys at Malahiteam for their work on this (see my interview with Georgiy below), which was obviously ongoing for a long period. That the Mlite-880 suddenly appears to have such a high level of construction and overall implementation by the Malahiteam partner is impressive.
The MLite-880 gets us thinking again about what could be next. Might we see the designer of the Belka slightly enlarge that radio to include a spectrum display? Will Tecsun finally get off the couch and realize how dated the displays are on their PLxxx portables? For now, we have yet another exciting surprise entry to the portable radio scene, and one that takes a brave leap to another design level. It’s one that makes me pine for the days when the shortwave bands were full of stations — having something like the MLite-880 back then, and being able to view the spectrum when bands were crowded, would have been quite the ride!
So, will you actually hear anything on the Mlite-880 that you won’t on your trusty PL-990 or D-808? Perhaps not. But this is one cool receiver that brings the VISUAL aspect of tuning in whatever is left on the SW bands, as well as AM, FM, and AIR band to a portable radio that won’t prompt the “what the hell is that?” questions that often come while using a DSP or similar radios that look like Star Trek communicators.
As I was completing this review, I successfully connected with Georgiy of Malahiteam on Telegram, and you can read his comments here:
The MLite-880: Comments by Georgiy of Malahiteam
Dan Robinson (DR): So, the MLite-880 is a revolutionary development in SDR portables. Previous Malahit DSP units were one thing, but putting this into a “traditional” portable cabinet changes the game. When did you guys realize that going to a traditional portable cabinet, rather than the metal cabinet designs, was a necessary forward step?
Georgiy: This step was clear almost from the start. But the sheer complexity of working with plastic held us back; there was no understanding of how to design the case, no understanding of the technology, nothing.
Work on MLite began in late 2022. Initially, the design was envisioned to be somewhat simpler, but the general concept was defined from the start. There were first concept models. Then it became clear that we wouldn’t be able to finish the work ourselves. Again, because of the plastic frame [issue]. If had known how to work with plastic, or found someone who did, we could have done it ourselves.

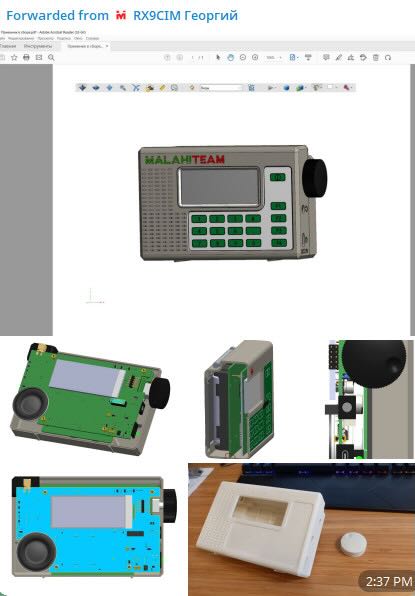

In early 2023, we had our first engineering prototype. It was a fully functioning radio receiver, mounted on test boards. I approached my Chinese partner and suggested they take on the Lite project. [They] developed a new enclosure design and refined the printed circuit board design. The first receiver, ready for use but still in a test enclosure, was expected to be delivered around late 2024 or early 2025. Throughout 2025, software improvements were made, and the Chinese partner was preparing for production. I wouldn’t say the Malahiteam team spent a lot of time on it overall, but it did take several months of work… spread out over several years.
DR: The big headline here, in my view, is that the remaining major radio makers could perhaps have moved to do something as you have done, replacing the numerical display with one with spectrum scope a long time ago?
Georgiy: In fact, technical work takes a lot of time, and the results are shown only when there’s something to show. Projects are announced only when there are results, and this can happen after years of actual development.
DR: One reviewer on YouTube stated that he thinks the 880 comes close to or equals the Malahiteam DSP-3. What would you say about this?
Georgiy: There is no difference in the quality of the DSP algorithms – the DSP 3 algorithms were taken as a basis. In terms of RF performance in the HF band, the MLite has a slightly higher dynamic range, surprisingly enough. The difference is small, just a few dB.
We weren’t able to completely eliminate noise; it still occurs in places, mostly on LW and MW. However, significant attention was paid to the screening, and turning off the display [using the 9 key] completely solves the issue.
DR: It seems you obviously gave thought to the need to have a robust whip antenna (unlike some of the other China small portables) and one that could be well-positioned when the 880 is on the desk. But there is still no full rotation at the bottom, and with the back stand, the antenna still can’t go full vertical. Might this be changed in future designs?
Georgiy: I think we’re discussing this issue. How feasible it is to change the body shape. I need to discuss this with my Chinese partner. This hasn’t been thought through yet. We’ll see based on experience and feedback.
DR: We see there is a prototype being discussed on the Malahit channel of something called the R1, a new SDR. Can you tell us anything about that?
Georgiy: Regarding the R1, it’s a new word in the world of radio. It’s a box with built-in batteries that connects via Wi-Fi and lets you listen to broadcasts through a web interface.
DR: A response from your Chinese partner stated that OTA live FW updates are not possible now, and this would require a hardware change. I find the STMCube method to be cumbersome, and I know others who are not PC comfortable, who agree. The Choyong LC90 is an example of decent OTA updating, but they have struggled with the issue of interference onto HF from the internal WIFI card, so I understand this is not a simple matter.
Georgiy: In fact, OTA mode can cause problems both in terms of server maintenance and accessibility from different countries. And the 880 doesn’t address this. But the R1 has this feature built in. . . OTA updates only, without user intervention. The device receives HF, VHF, and UHF frequencies. Its dynamic range is higher than that of the RSP. It also has three built-in antenna connections: 50 Ohm, HiZ, and balanced input. You can literally hang the R1 on a loop antenna and listen to the radio remotely via Wi-Fi.
DR: So if you could summarize Malahiteam planning on the 880, was there a main goal of producing a “cheaper” version of DSP3? As one of the YouTube reviewers noted, use of the MSI-SDR-M1 chip seems to place the 880 equal to DSP-3.
Georgiy: MLite-880 doesn’t use msi001. It uses a very original solution, the specifics of which I won’t reveal yet. But it’s really interesting.
